Rapenburg Plaza Helps National Military Museum Unfold The Story of the Forces

News

Expert systems designer, Rapenburg Plaza saw an intensive year of meticulous planning, design and integration come to fruition on 13 December 2014, when the National Military Museum, Europe’s biggest military museum opened to the public.

Designed as a fully integrated entity, the new museum uses technology on an unprecedented scale across its expansive 20, 000-metre exhibition area located in the former Soesterberg airbase in the Netherlands. His Majesty, King Willem Alexander opened the museum at a spectacular ceremony with the Royal Military Band, cannon shots and loud shouts of military commands.

Leading the project team was Heijmans, one of the largest construction companies in the Netherlands. The building architect was Felix Claus Dick van Wageningen. Main contractor for the museum interior, Bruns was responsible for process and project management, development, engineering, production and installation of all the exhibitions. The project includes lighting, hardware and software – animations, short movies, games and a mobile application. Bruns subcontracted international lighting design, AV and show control company Rapenburg Plaza to work with exhibition architect Kossmann.dejong on the project.

rapenburg plaza screens at national military museum netherlands

“Rapenburg Plaza was brought in at the beginning of the project to develop a wholly integrated lighting design, multimedia, audio and show control system that would add great value to the National Military Museum. It needed to be simple to use, maintain and deploy combining all media together over an IT infrastructure. We have worked with RapenburgPlaza before on several award winning international projects so knew their capabilities, ” said Maarten Taborsky, Project Director at Bruns B.V.

“Rapenburg Plaza has an intensive way of looking at hardware and designing systems. Their complexity of integration was vital to telling the museum story. Our unique working partnership and cooperation will continue for ten years after the museum’s official inauguration, ” added Taborsky.

“All 17 museum environments use technology in an iconic, integrated and interactive way. Visitors can interact with technology either by accessing information or bygaming – so there really is something to engage everyone who visits.”

national military museum netherlands exterior

Lighting design, control and networking

 The client wanted the audiovisual system to have a minimum lifespan of 15 years. Rapenburg Plaza brought several design considerations to life including a sophisticated technical lighting bridges installed in the high ceilings for access to equipment for maintenance as well as long distance cable runs and multiple server rooms. The lighting design by Rapenburg Plaza’s in-house Lighting Designer, Pelle Herfst consisted of more than 3, 900 energy efficient LED lighting sources.

To control all exhibition components, Rapenburg Plaza designed, installed and programmed a network-based show control system. This system gives complete control over the lighting and AV equipment and allows the Rapenburg Plaza programmers to manage and monitor the entire installation remotely – a valuable tool. This system comprises Medialon show control software, Pharos show controllers, KissBox data communication interfaces and industrial network hardware and software.

“Rapenburg Plaza proved again the ability to achieve the requested high-quality standards for technology and show control. They used a well-thought-out system design and cable plan, ” added Mark de Jong, creative director at Kossmann.dejong.

rapenburg plaza av at national military museum netherlands

Touring military history

Exhibition areas are split into two concepts. The ‘Daylight Museum’ on the ground floor gives a chronological overview of military technology over 1, 000 years. The second concept ‘Black Box’ comprises seven exciting theatrical environments.

The new site includes many places where digital media, lighting and audio play a key role in educating and informing the public.

Highlights include:

Pre-show area

Greeting visitors is a 7.5-minute presentation about the museum introducing its people as well as a moving and compelling insight into the social aspects of warfare, history and its future.

For the giant tiled and curved projection surface, Rapenburg Plaza integrated three Digital Projection International projectors with Dataton WATCHOUT™ multi-image display and presentation software.

Hall 1: The Netherlands and the World

rapenburg plaza national military museum av

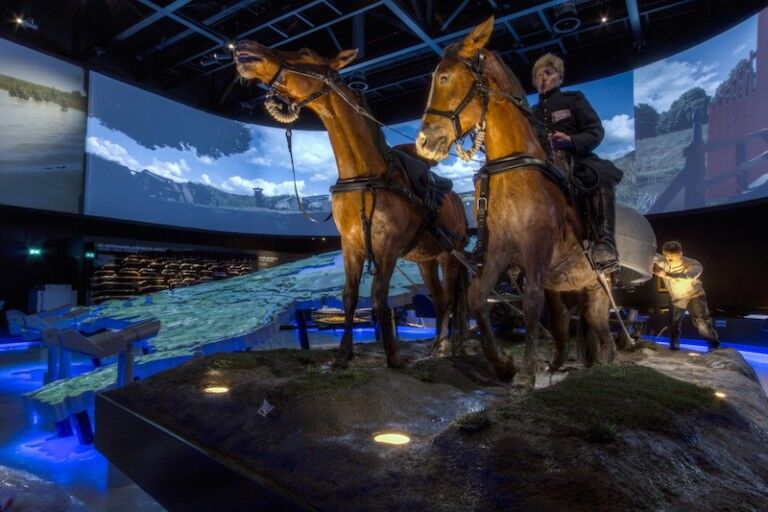

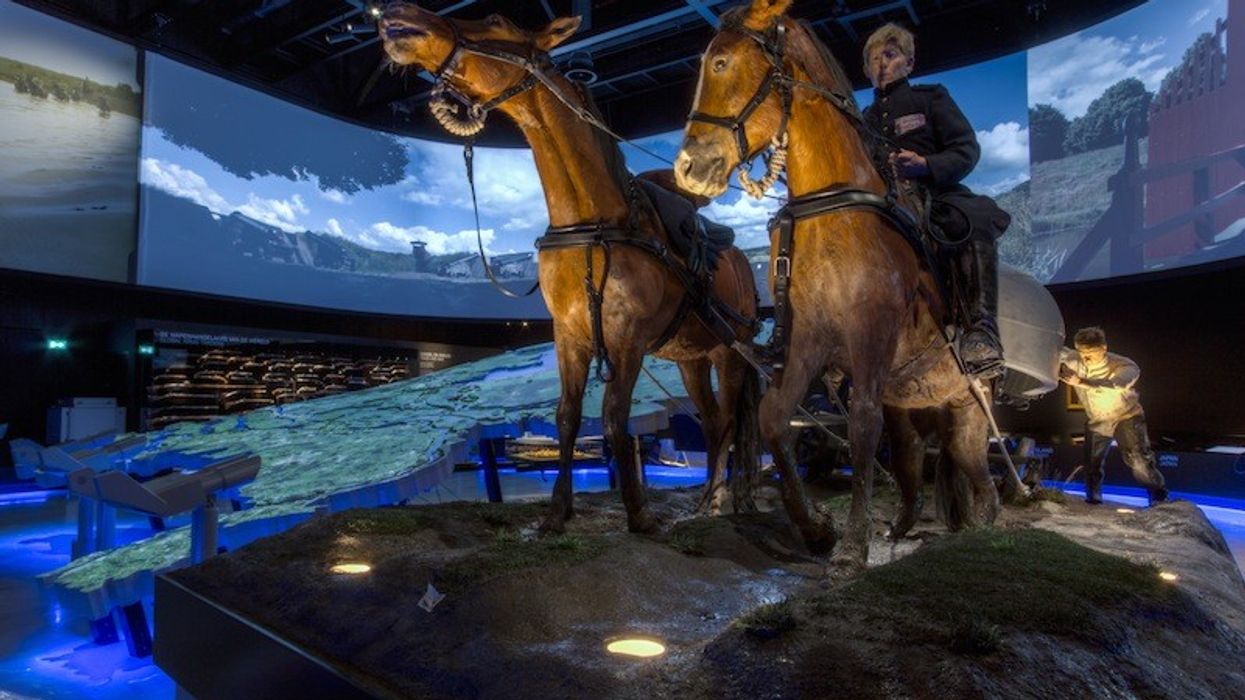

This first exhibit comprises 25-metre wide panoramic projection positioned above a 7 x 10-metre giant projected giant map. Cantilevered above the floor, the map is integrated with projected video, surround audio and lighting providing a stunning presentation of the tactical and strategic posts in the Netherlands. Four custom designed telescopes at the foot of the giant map, zoom into the map positions providing information about weapons used and map locations.

Around the perimeter of the exhibit are eight electronic information points looking into war history and how the world has changed within the last few centuries, including 9/11 events.

“By giving visitors the opportunity to use big gestures over the map, they are able to access the story of the Netherlands in a phenomenal way, ” added Maarten Taborsky, Project Director at Bruns.

rapenburg plaza lighting at national military museum netherlands

Hall 2: World of the Armed Forces

Rapenburg Plaza designed a synchronized film across ten screens using projection. This uses the proprietary ‘Raapu’ custom designed high-performance media players, designed by Tony ter Neuzen, Network and Systems Engineer at Rapenburg Plaza.  Footage and sound can be checked, updated and maintained at any time.

A large touchscreen comprising three 55-inch monitors is integrated with an infrared bezel that allows the audience to interactively access information about the categorization of awards and medals.

Showpiece room: Glory

Integrated audio and lighting are a highlight in this room focusing cabinets and art collections in a boardroom environment.

Hall 3: Soldiers in the Spotlight

Located throughout this exhibit are interactive seated cabins that tell personal stories of veterans and soldiers. Here, Rapenburg Plaza has integrated audio into each of the seated cabins along with exhibit-wide lighting and video. 42-inch monitors and ‘Raapu’ players are located around the edge of exhibits to tell the stories about survival!

rapenburg plaza av at national military museum soldier

Introduction to The Equipment Hall, Daylight Museum

For this curved screen projection, Rapenburg Plaza has integrated five Panasonic projectors and Dataton WATCHOUT multi-image display and presentation software.

Hall 5: Operations

One of the only specially designed 360-degree tilted immersive floor to ceiling dome projection systems in Europe, visitors are immersed in a narrated high-resolution film about warfare throughout the centuries. The steel dome measures 14-metres wide.

A 7thSense Delta Media Server is integrated with nine Digital Projection International projectors. An immersive audio system sits behind the perforated aluminium dome screen.

“The immersive dome system is really unique and we understand that it is the only one of its type in Europe, ” said Maarten Taborsky, Project Director at Bruns. “The technology and its architecture designed by Rapenburg Plaza allowed us to make it a system that met the client budget and is the best of its kind!”

Around the outside of the dome are five missions showing command on the field and tactical games. These include four 55-inch foil touch screens showing information and digital photographs.

“We wanted to provide the highest-quality projections and immerse the audience in storytelling, ” added Jansen.

Hall 6: Society and the Armed Forces

Fourteen old-fashioned TV screens show content from society. A ultra-compact ‘Pico’ projector is built into the rear of each screen. Lighting is designed to use a day and night experience on a giant scale-model garrison. This exhibit highlights how people look at the Army. It uses six television cameras integrated with 17-inch monitors where the audience can listen to a film about the Netherlands, candeactivate a military device and zoom into the Netherlands showing its unique military heritage.

Exit Hall: Present, Historical and Future

Rapenburg Plaza ensures that light plays a dynamic role in this room in combination with video projections. Taking visitors on a journey into the future, this exhibit comprises 360Ëš projection onto various surfaces.

“Rapenburg Plaza installed the world’s first 1.2-metre diagonal multi-touch interactive spheres from Pufferfish Displays. The two spheres are suspended from the ceiling. This exhibit looks into the future of technology, defense and warfare, ” said Maarten Taborsky, Project Director at Bruns.

In the centre of the room is a 4.5 metre diameter projected sphere. The sphere uses four Panasonic projectors integrated with Dataton WATCHOUT multi-image display and presentation software.

F16 Theatre

national military museum netherlands

Designed as a presentation space, this area uses Europe’s first ever installation of Meyer Sound CAL Line Array audio. The technology was supplied by Audio Electronics Mattijsen (AEM) and integrated with a giant 6 by 3.4-metre high screen using Digital Projection International projectors. The presentation showcases a film about modern weapons and sits amongst weapons, tanks and planes suspended from the ceiling.

Additional exhibit areas and children’s Interactive Zone

interactive games at national military museum netherlands

Moveable LED lighting and information points using touch screens are installed throughout exhibit areas. Interactive gaming is designed in the children’s Interactive Zone.

 Summing up the design and deployment of lighting, multimedia, audio and lighting control at the museum, Sierk Janszen at Rapenburg Plaza concludes: “We wanted to use the latest technologies to bring military history closer to people, to immerse them and encourage them to participate, and to make them aware of their involvement. The results of our work is a fantastic museum which is unique in Europe and a pleasure to visit for the whole family.”

Rapenburg Plaza’s involvement with the project doesn’t end with its opening. They will manage various elements of the facility well into its operation to make sure it runs smoothly.
